 Post subject: Unbranded Flash with Chipsbank Controller
PostPosted: February 1st, 2019, 15:00
Offline
User avatar

Joined: June 11th, 2013, 17:01
Posts: 1135
Location: Phoenix, AZ USA
This flash drive gets the correct power in the correct places, but still not seen. I presume we my be able to get to the chip pinout via the via's on the controller side? Anyone seen one before?


Attachments:

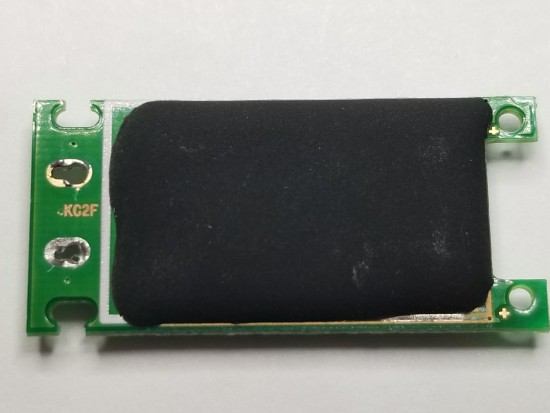

20190201_114634.jpg [ 1.78 MiB | Viewed 753 times ]

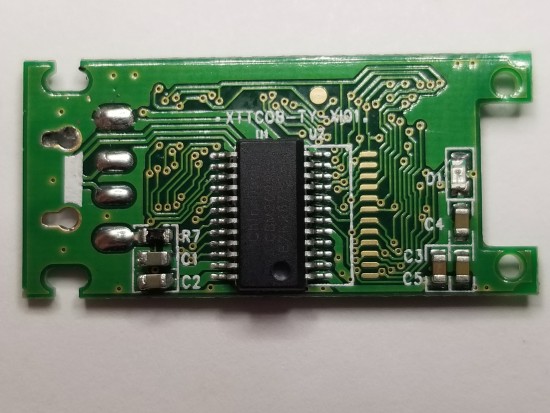

20190201_114626.jpg [ 2.31 MiB | Viewed 753 times ]

_________________
HDD, SSD, Flash and RAID Data Recovery
Top
 Profile

 Post subject: Re: Unbranded Flash with Chipsbank Controller
PostPosted: February 1st, 2019, 16:29
Offline

Joined: October 24th, 2009, 15:22
Posts: 621
Location: Poland
Yes, you must connect from controller side.

_________________
Odzyskiwanie danych


Top
 Profile

 Post subject: Re: Unbranded Flash with Chipsbank Controller
PostPosted: February 1st, 2019, 16:32
Offline
User avatar

Joined: June 11th, 2013, 17:01
Posts: 1135
Location: Phoenix, AZ USA
arvika wrote:
Yes, you must connect from controller side.

Is there a template, or just experience knowing what the pinout is?

_________________
HDD, SSD, Flash and RAID Data Recovery


Top
 Profile

 Post subject: Re: Unbranded Flash with Chipsbank Controller
PostPosted: February 1st, 2019, 17:12
Offline

Joined: October 24th, 2009, 15:22
Posts: 621
Location: Poland
Find datasheet of the controller, there will be everything you need.

_________________
Odzyskiwanie danych


Top
 Profile

 Post subject: Re: Unbranded Flash with Chipsbank Controller
PostPosted: February 1st, 2019, 17:54
Offline
User avatar

Joined: June 11th, 2013, 17:01
Posts: 1135
Location: Phoenix, AZ USA
arvika wrote:
Find datasheet of the controller, there will be everything you need.

Perfect, thanks.
