 Post subject: Dead Samsung MZ-VLB2560
PostPosted: August 21st, 2019, 9:07
Offline

Joined: August 21st, 2019, 8:57
Posts: 3
Location: Norway
Hi
I have a dead Samsung MZ-VLB2560 , and are wondering if it possible to revive this nvme ssd. It died quite instantly I've been told, a warning from Windows( Dont know what), and then on reboot the controller didnt find the disk.

I have tried connecting the disk to a new nvme controller, but to no avail.

What do you think, it is possible to do some phyiscal debugging on this thing? Can it be a short or dead component?

I noticed that it gets really hot, but I have no benchmark on the temperature, so I really dont know what temperature it runs at while idle, but I doubt it should get _that_ hot while idling. It's the ARM MCU itself that gets really hot, but I'm guessing a physical fault, not a software fault causing overload and that heat.

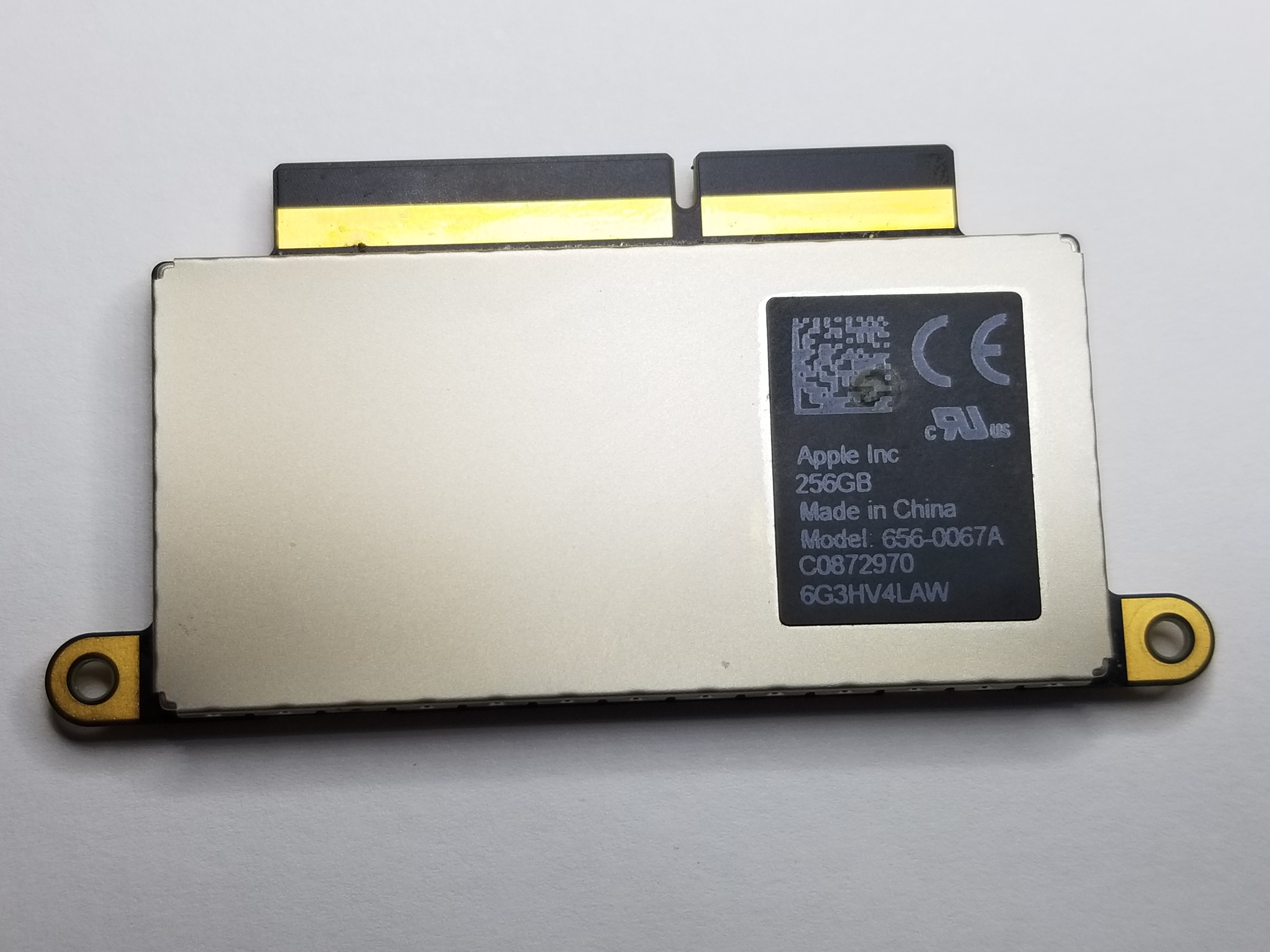

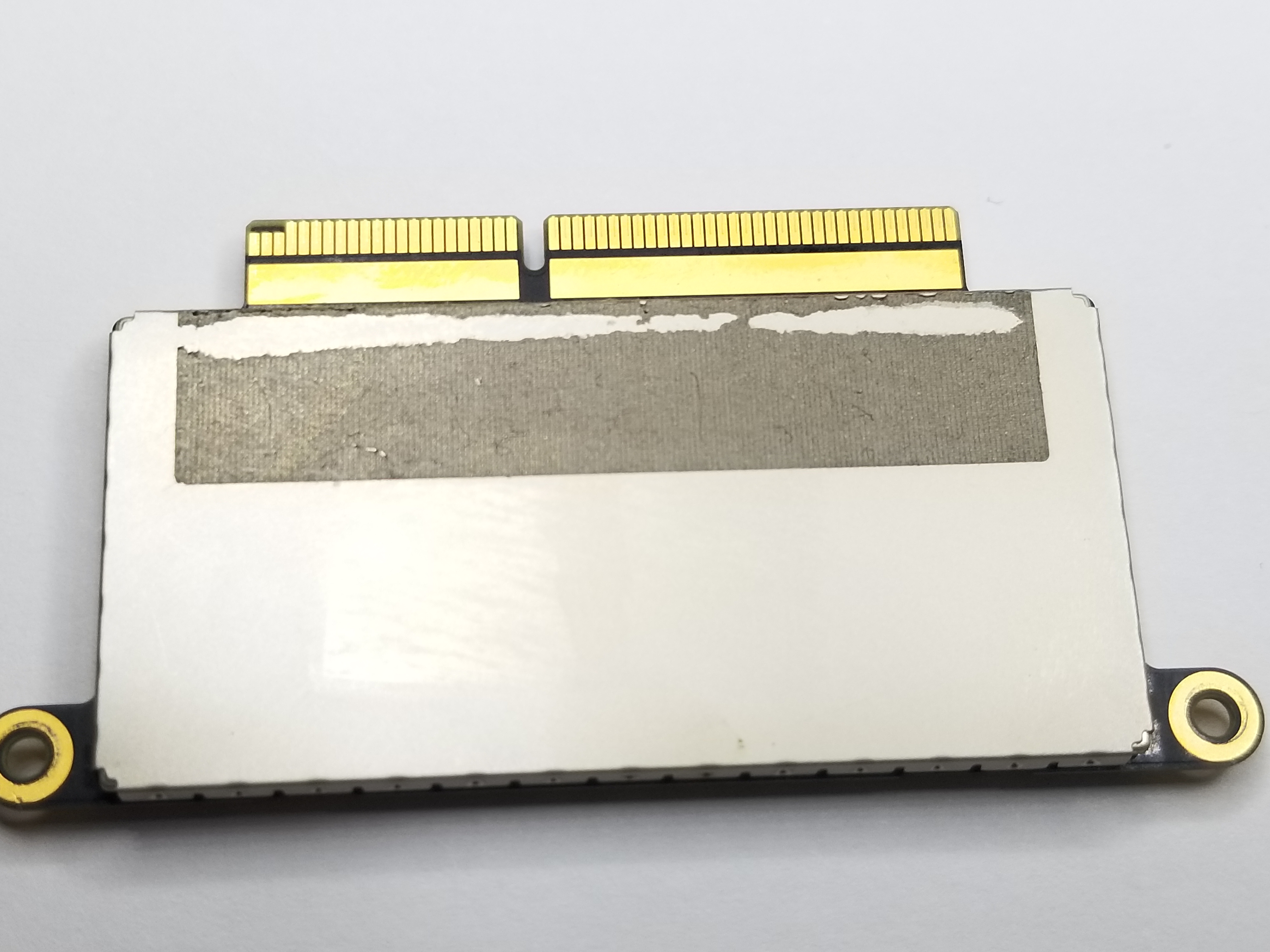

Attachments:
IMG_5236.jpg [ 1.3 MiB | Viewed 2640 times ]
Top
 Profile

 Post subject: Re: Dead Samsung MZ-VLB2560
PostPosted: August 21st, 2019, 19:52
Offline
User avatar

Joined: September 8th, 2009, 18:21
Posts: 12171
Location: Australia
Measure the voltages at V1 - V6 and Vboost.


Attachments:
Supply_Volts.jpg [ 312.76 KiB | Viewed 2593 times ]

_________________
A backup a day keeps DR away.
Top
 Profile

 Post subject: Re: Dead Samsung MZ-VLB2560
PostPosted: August 21st, 2019, 20:23
Offline
User avatar

Joined: September 8th, 2009, 18:21
Posts: 12171
Location: Australia
Measure the Vin and Vout pins of each load switch.

TPS22975DSGR, Texas Instruments, 0.6V - 5.7V, 6A, 16mOhm Load Switch, marking 13XH, WSON-8:
http://www.ti.com/lit/ds/symlink/tps22975.pdf

TPS22966, Texas Instruments, 5.5V, 6A, 16-mohm ON-Resistance Dual-Channel Load Switch, marking RB966:
http://www.ti.com/lit/ds/symlink/tps22966.pdf

TPS22990DMLR, Texas Instruments, 0.6V - 5.5V, 10A, 3.9mOhm Load Switch, marking [url]RB990, WSON-10: http://www.ti.com/lit/ds/symlink/tps22990.pdf[/url]


Attachments:
RB990_TPS22975_load_switches.jpg [ 120.74 KiB | Viewed 2588 times ]
RB966_load_switch.jpg [ 72.79 KiB | Viewed 2588 times ]

_________________
A backup a day keeps DR away.
Top
 Profile

 Post subject: Re: Dead Samsung MZ-VLB2560
PostPosted: August 22nd, 2019, 2:06
Offline

Joined: August 21st, 2019, 8:57
Posts: 3
Location: Norway
Thanks. What should I use as reference/ground when measuring V1-V6?


Top
 Profile

 Post subject: Re: Dead Samsung MZ-VLB2560
PostPosted: August 22nd, 2019, 2:40
Offline
User avatar

Joined: September 8th, 2009, 18:21
Posts: 12171
Location: Australia
Use the ground pins at the connector.

M.2 format identification:
http://www.hddoracle.com/viewtopic.php?f=106&t=2506

_________________
A backup a day keeps DR away.


Top
 Profile

 Post subject: Re: Dead Samsung MZ-VLB2560
PostPosted: September 30th, 2019, 1:34
Offline

Joined: August 21st, 2019, 8:57
Posts: 3
Location: Norway
Thanks. I havent been able to do anything successfull with this yet.

Is there anyone in Europe that are able to restore data from these chips?


Top
