 Post subject: SSD Research - Liteon LCS 128M6S
PostPosted: May 8th, 2015, 0:56
Offline
User avatar

Joined: December 4th, 2012, 1:35
Posts: 3296
Location: Adelaide, Australia
This SSD is new, for research. In this thread I will post anything interesting I find. I hope to include things like:
- Console access
- JTAG
- Firmware update, RE, tricks, tips
- Possibility of NAND chip off recovery
- Wear levelling/ECC/data Structures etc
- anything interesting

Feel free to add anything you might know or find out, or any comments, criticism etc. All I ask Is the thread stays on topic to this research.
Attachment:
LCS128M6S-label.jpg [ 241.42 KiB | Viewed 4706 times ]

Vendor: LiteOn
Model: LCS-128M6S
Type: SSD
capacity: 128GB
Interface: 6Gb/s SATA
Manufactured: Feb 2014
firmware: DC7110E
Condition: New
Controller: Marvell 88SS9187-BLD2 (code name Monet)
Controller CPU: Dual-core Marvell 88FR102 V5 CPU
NAND chips: 8x 19nm MLC
NAND Vendor: Toshiba
NAND Laser code:TH58TEG7DDJTA20

Controller DataSheet: http://www.marvell.com/storage/assets/Marvell_88SS9187-001.pdf


I notice the string: KCC-REM-LIT-LCS-512M6S.. I wonder if this is a remanufactured/refurbished 512GB model?

Attachment:
LCS128M6S-PCB-1.jpg [ 756.62 KiB | Viewed 4706 times ]

Attachment:
LCS128M6S-PCB-2.jpg [ 808.34 KiB | Viewed 4706 times ]


On the board, a serial port is clearly marked with TRG obviously TX RX and GND. I got no output on a serial test with Putty. Serial Console needs to be enabled?

The other unpopulated 10pin block, or the test points TP1, TP52, TP53, TP56, TP61 etc, could be JTAG. Not sure what TM1, TM2, TM3 are. I will test these soon.


Top
 Profile

 Post subject: Re: SSD Research - Liteon LCS 128M6S
PostPosted: May 2nd, 2019, 1:47
Offline

Joined: May 2nd, 2019, 1:35
Posts: 1
Location: Johor BAhru
HaQue wrote:
This SSD is new, for research. In this thread I will post anything interesting I find. I hope to include things like:
- Console access
- JTAG
- Firmware update, RE, tricks, tips
- Possibility of NAND chip off recovery
- Wear levelling/ECC/data Structures etc
- anything interesting

Feel free to add anything you might know or find out, or any comments, criticism etc. All I ask Is the thread stays on topic to this research.
Attachment:
<!-- ia2 -->LCS128M6S-label.jpg<!-- ia2 -->

Vendor: LiteOn
Model: LCS-128M6S
Type: SSD
capacity: 128GB
Interface: 6Gb/s SATA
Manufactured: Feb 2014
firmware: DC7110E
Condition: New
Controller: Marvell 88SS9187-BLD2 (code name Monet)
Controller CPU: Dual-core Marvell 88FR102 V5 CPU
NAND chips: 8x 19nm MLC
NAND Vendor: Toshiba
NAND Laser code:TH58TEG7DDJTA20

Controller DataSheet: http://www.marvell.com/storage/assets/Marvell_88SS9187-001.pdf


I notice the string: KCC-REM-LIT-LCS-512M6S.. I wonder if this is a remanufactured/refurbished 512GB model?

Attachment:
<!-- ia1 -->LCS128M6S-PCB-1.jpg<!-- ia1 -->

Attachment:
<!-- ia0 -->LCS128M6S-PCB-2.jpg<!-- ia0 -->


On the board, a serial port is clearly marked with TRG obviously TX RX and GND. I got no output on a serial test with Putty. Serial Console needs to be enabled?

The other unpopulated 10pin block, or the test points TP1, TP52, TP53, TP56, TP61 etc, could be JTAG. Not sure what TM1, TM2, TM3 are. I will test these soon.
Hi

I understand your post is from long time ago, do you have circuit diagram for this? I am hoping to revive a drive which is giving slight smell when applied power. I think either a capacitor or voltage regulator is burned.


Top
 Profile

 Post subject: Re: SSD Research - Liteon LCS 128M6S
PostPosted: May 2nd, 2019, 4:42
Offline
User avatar

Joined: September 8th, 2009, 18:21
Posts: 11544
Location: Australia
@xImran, if you can provide clearer photos, I should be able to show you the voltage test points.

_________________
A backup a day keeps DR away.


Top
 Profile

 Post subject: Re: SSD Research - Liteon LCS 128M6S
PostPosted: May 2nd, 2019, 22:42
Offline
User avatar

Joined: September 8th, 2009, 18:21
Posts: 11544
Location: Australia
HaQue wrote:
Feel free to add anything you might know or find out, or any comments, criticism etc. All I ask Is the thread stays on topic to this research.

    chip markings
    clearer photos/scans
    terminal output when NAND R/B* pin grounded
    support for DevSleep? (SATA power pin P3)
    onboard supply voltages

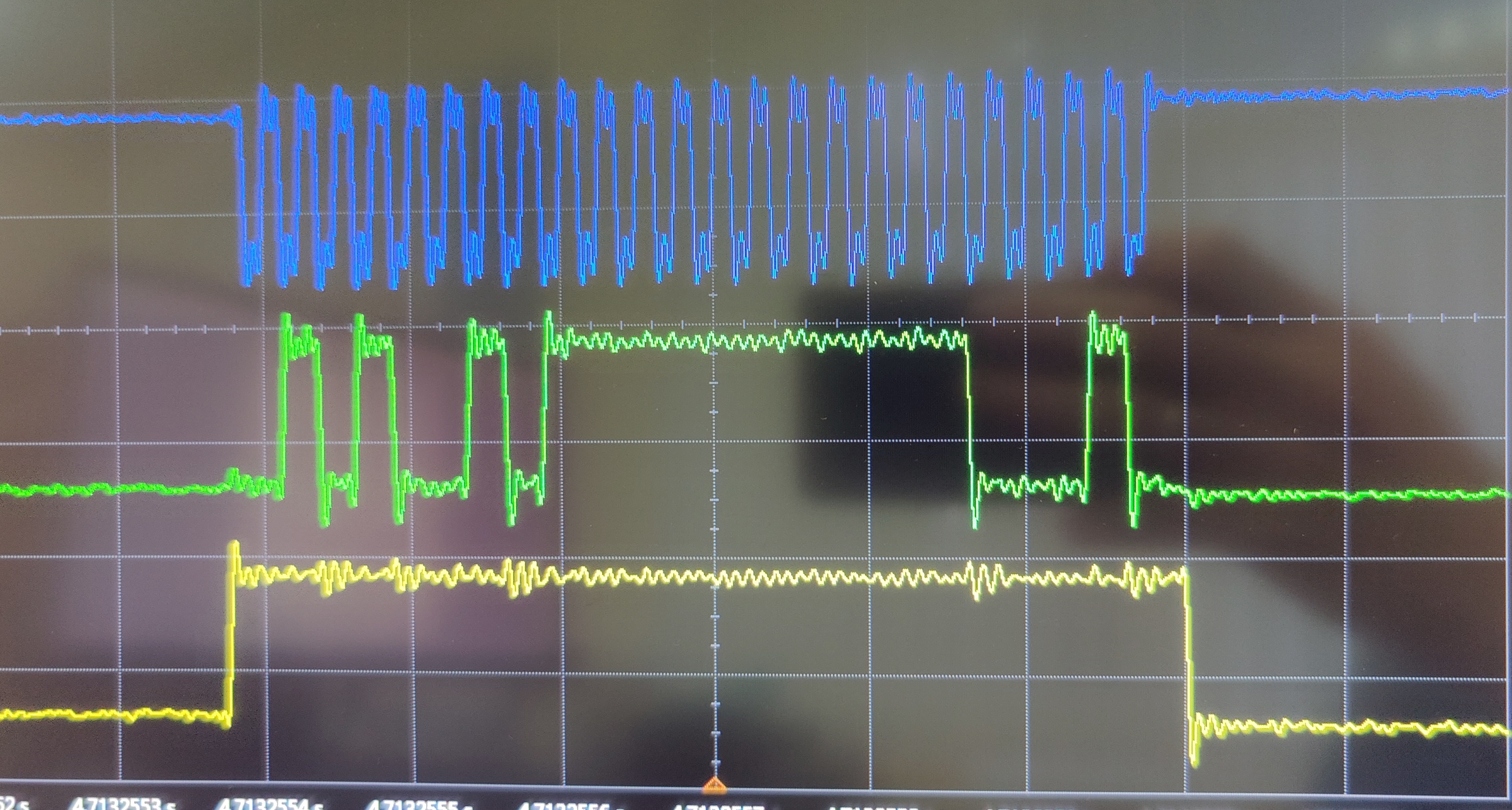

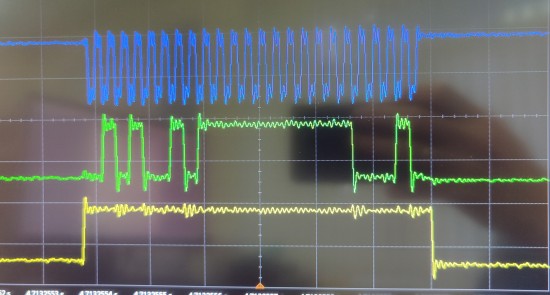

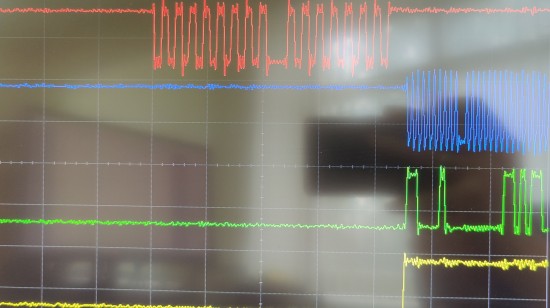

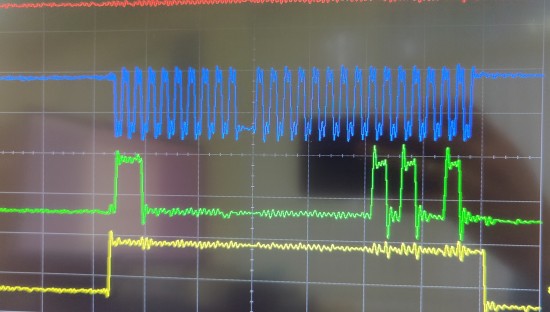

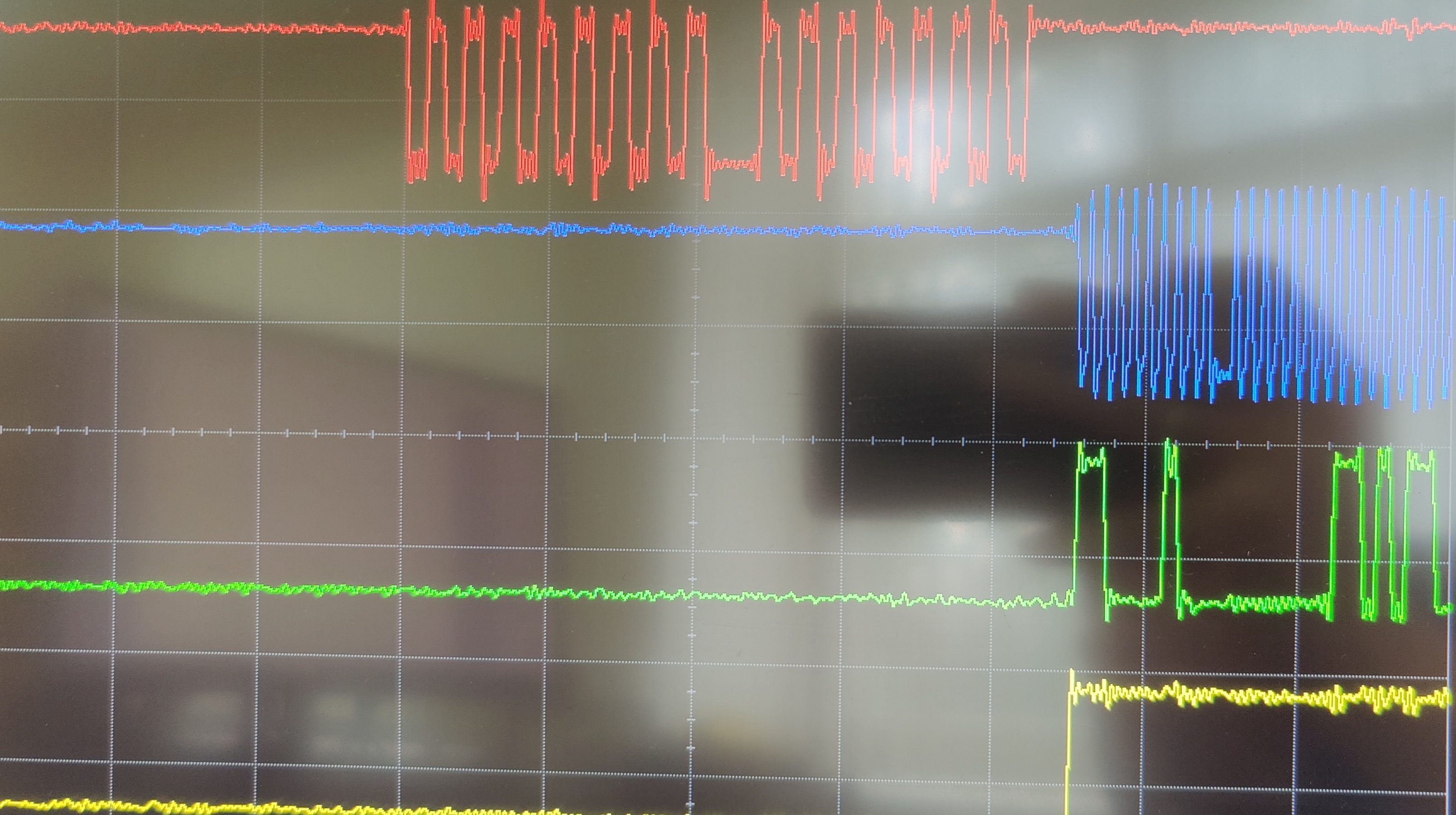

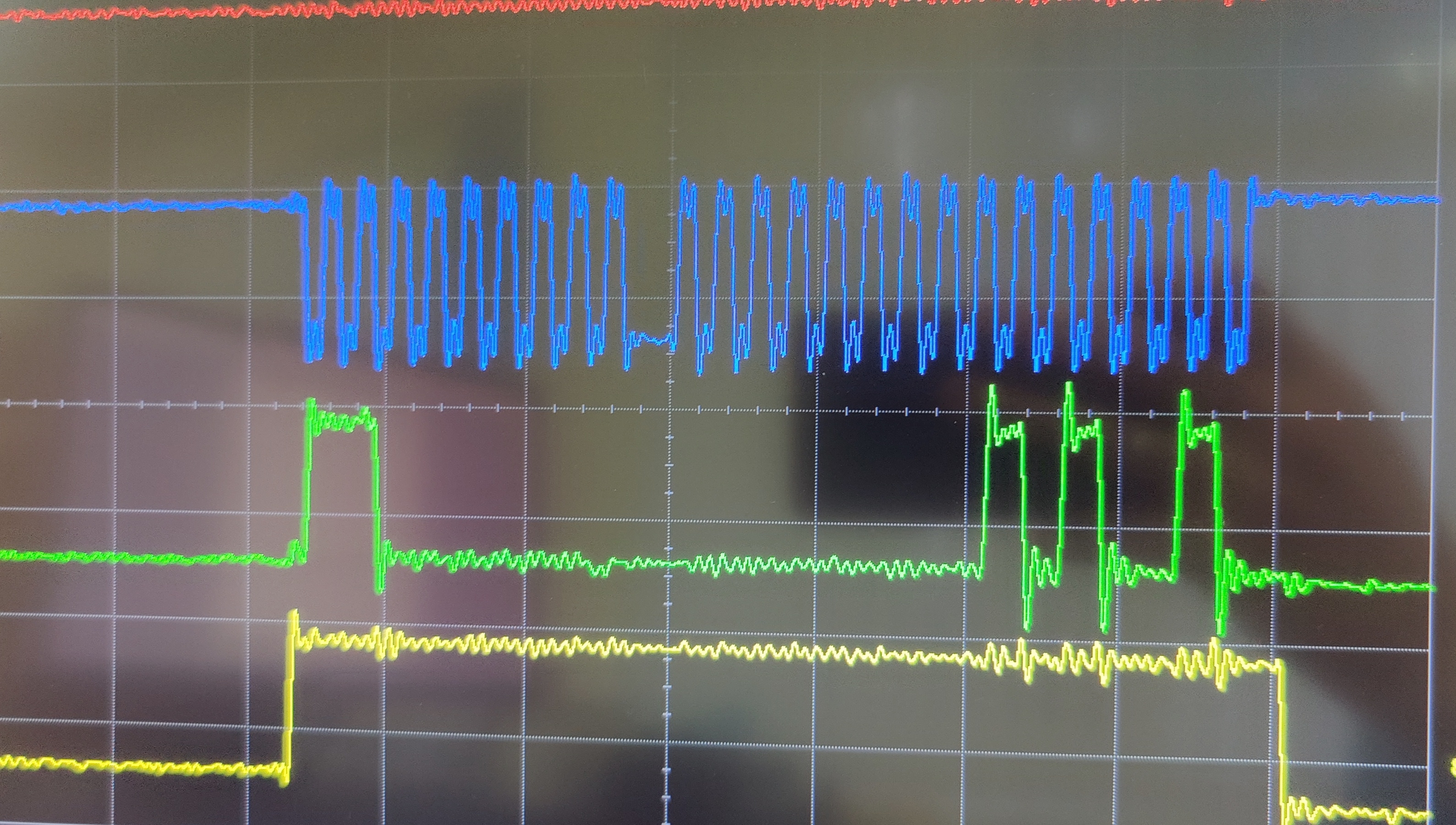

    serial flash dump
