Maxtor 90320d2 missing component

Page 1 of 1

[ 8 posts ]

Previous topic | Next topic

Author

Message

helpless

Post subject: Maxtor 90320d2 missing component

Posted: October 7th, 2015, 4:54

Joined: February 26th, 2013, 6:58
Posts: 211
Location: Hungary

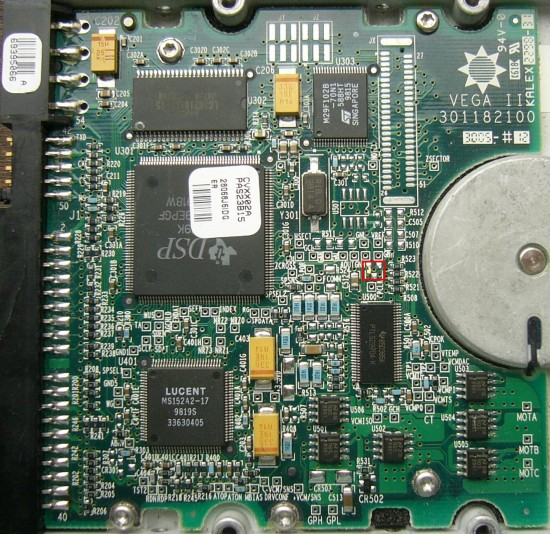

I think this board has a missing component, can you help me identify it? Maybe a transistor or a chip. Thanks.
Similar board here.

Attachments:

File comment: 90320d2 pcb

Maxtor 90320d2.JPG [ 370.97 KiB | Viewed 6015 times ]

_________________
Those who know don’t talk. Those who talk don’t know.

Top

fzabkar

Post subject: Re: Maxtor 90320d2 missing component

Posted: October 7th, 2015, 18:48

Joined: September 8th, 2009, 18:21
Posts: 16960
Location: Australia

The voltage on each pin might help to identify it.

_________________
A backup a day keeps DR away.

Top

drHDD

Post subject: Re: Maxtor 90320d2 missing component

Posted: October 8th, 2015, 16:36

Joined: October 5th, 2015, 18:53
Posts: 488
Location: US

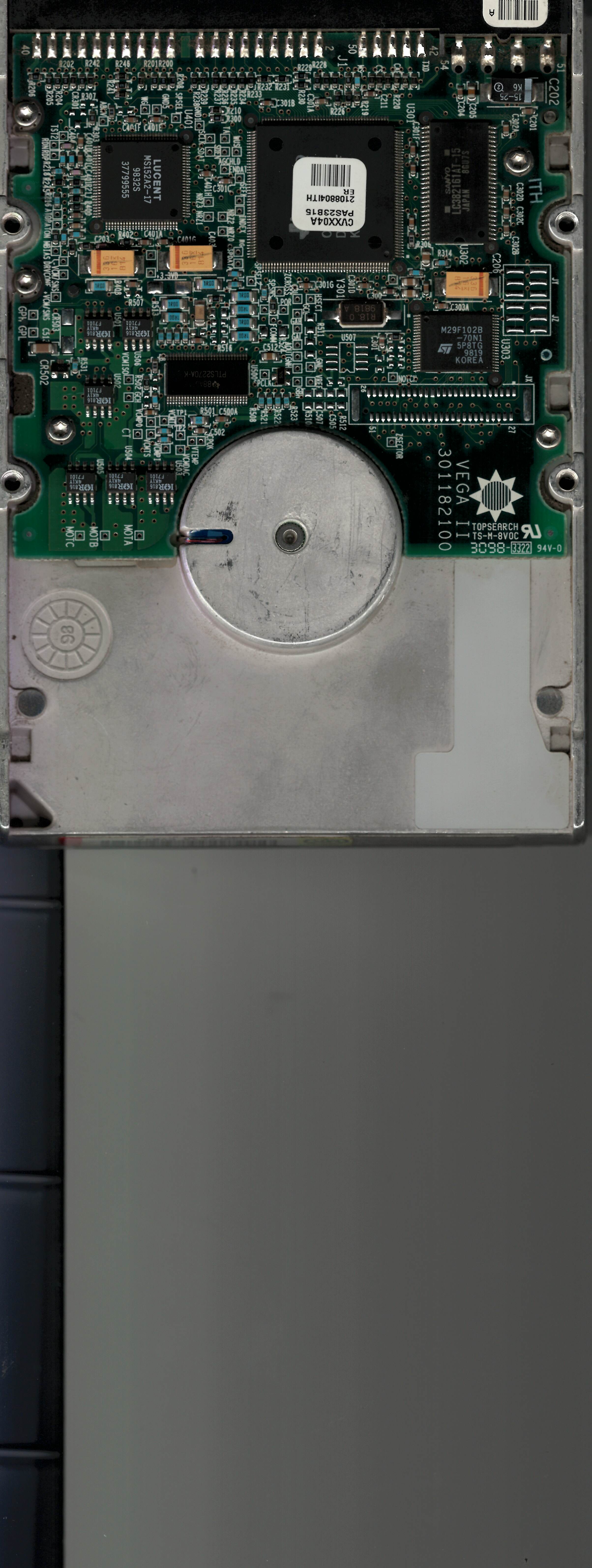

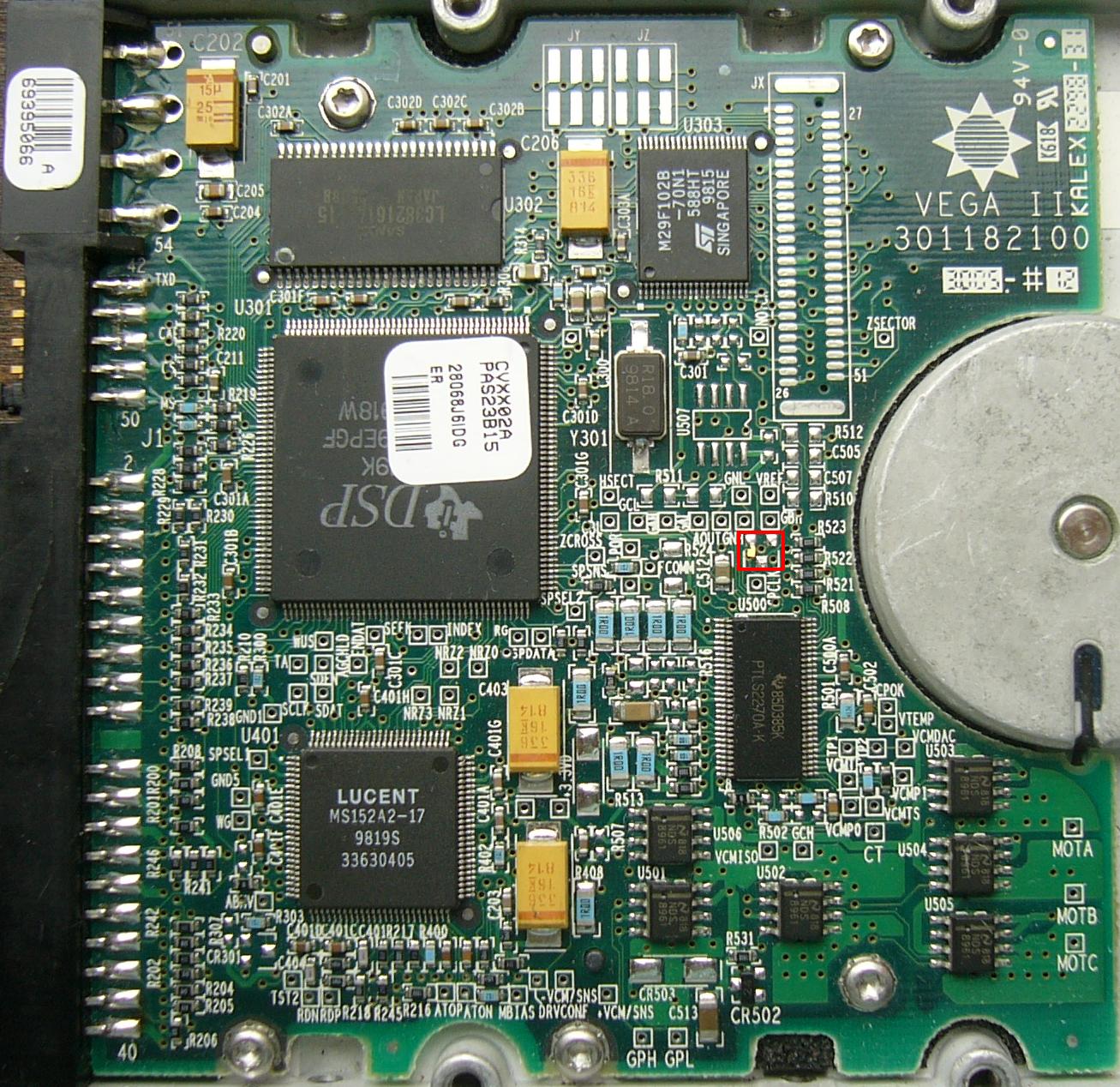

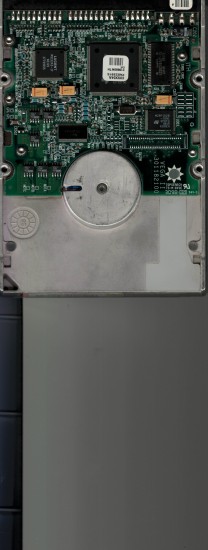

Is this one clear enough?

Attachments:

[Untitled]_2015100816133900.jpg [ 981.54 KiB | Viewed 5944 times ]

Top

helpless

Post subject: Re: Maxtor 90320d2 missing component

Posted: October 8th, 2015, 18:54

Joined: February 26th, 2013, 6:58
Posts: 211
Location: Hungary

Thanks guys. The picture is not bad,

but what the hell is it? It says PCLK on the board and I am unable to read the marking on it.
I thought that finding the component was easier than finding a board. Looks that I'm mistaken?

_________________
Those who know don’t talk. Those who talk don’t know.

Top

fzabkar

Post subject: Re: Maxtor 90320d2 missing component

Posted: October 8th, 2015, 19:43

Joined: September 8th, 2009, 18:21
Posts: 16960
Location: Australia

SPCLK, SPDATA, SPSNS appear to be part of the spindle motor control section. You need to do some circuit tracing in that area.

_________________
A backup a day keeps DR away.

Top

Amarbir[CDR-Labs]

Post subject: Re: Maxtor 90320d2 missing component

Posted: October 9th, 2015, 4:23

Joined: August 15th, 2006, 3:01
Posts: 3522
Location: CDRLabs @ Chandigarh [ India ]

Hello ,
What Are You Trying To Do .Is It a Data-recovery Case Or a Question Out Of Engineering Curiosity

_________________
Regards
Amarbir S Dhillon , Chandigarh Data Recovery Labs [India]
Logical,Semi Physical And Physical Data Recovery
Website-> http://www.chandigarhdatarecovery.com

Top

helpless

Post subject: Re: Maxtor 90320d2 missing component

Posted: October 10th, 2015, 6:02

Joined: February 26th, 2013, 6:58
Posts: 211
Location: Hungary

Trying to repair the drive. It spins up, starts clicking, stops clicking, keeps spinning, gets ready but responds to commands with errors. Maybe this missing component is the source of all troubles. If I knew what it was, I could buy it and solder onto the board. No DR job, so not worth buying identical board.
