 Post subject: Seagate Portable HDD PCB diode
PostPosted: June 16th, 2021, 23:28
Offline

Joined: June 16th, 2021, 22:47
Posts: 1
Location: Malaysia
Hello everyone!
I would really appreciate anyone can point me which of these electronics on my seagate portable HDD PCB is the diode. Attached the photos of the PCB. Thank you for your help.

PCB: Seagate Portable Laptop HDD 1TB
PCB Serial no: 100720903


Attachments:

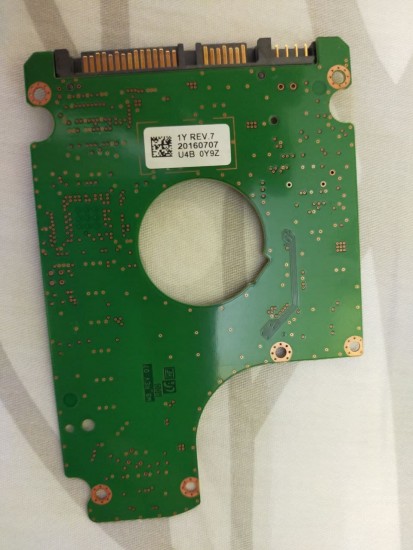

PCB seagate 100720903 - back.jpg
PCB seagate 100720903 - back.jpg [ 101.64 KiB | Viewed 6228 times ]

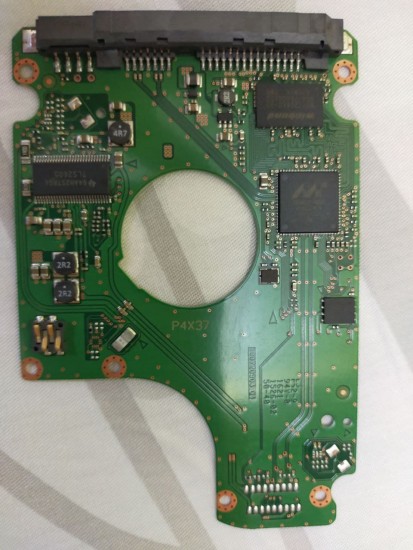

PCB seagate 100720903 - front.jpg
PCB seagate 100720903 - front.jpg [ 131.33 KiB | Viewed 6228 times ]
Top
 Profile

 Post subject: Re: Seagate Portable HDD PCB diode
PostPosted: June 17th, 2021, 16:07
Offline

Joined: July 31st, 2018, 12:30
Posts: 78
Location: Brasil
In the top right corner there's the Winbond chip, to the left a round coil (2R2), to the left of that coil the diode is the small black component, i believe.


Top
 Profile

 Post subject: Re: Seagate Portable HDD PCB diode
PostPosted: June 17th, 2021, 17:08
Offline

Joined: November 7th, 2020, 5:31
Posts: 1084
Location: The_UK
https://forums.tomshardware.com/threads/need-help-seagate-portable-hdd-pcb-diode-issue.3708560/#post-22354175

fzabkar has already answered this - I assume there was cross over due to the posting delay.
