NAND LGA70 pinouts?

April 17th, 2022, 9:13

Hi. NAND LGA70 from USB flash drive.
Need help with pinoust. maybe someone has? Thx!

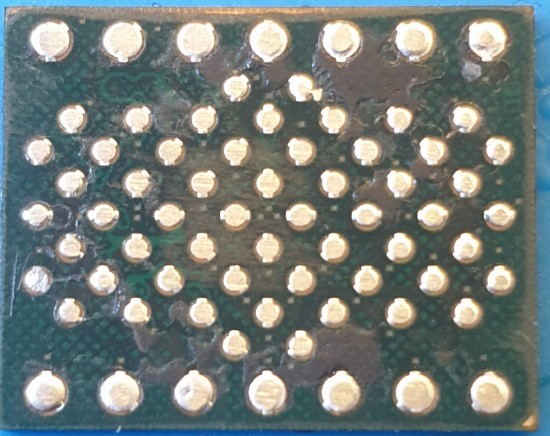

Attachments
gold6565
  • gold6565
  • Posts: 71
  • Joined: February 18th, 2020, 9:35
  • Location: Ukraina

Re: NAND LGA70 pinouts?

April 18th, 2022, 4:36

onfi_5_0_gold.pdf page 18
NSerN
  • NSerN
  • Posts: 2
  • Joined: April 17th, 2022, 8:53
  • Location: Europe

Re: NAND LGA70 pinouts?

April 18th, 2022, 6:08

gold6565 wrote:onfi_5_0_gold.pdf page 18


LGA52 same as 60 and 70?
gold6565
  • gold6565
  • Posts: 71
  • Joined: February 18th, 2020, 9:35
  • Location: Ukraina

Re: NAND LGA70 pinouts?

April 18th, 2022, 13:32

No, this is EZNAND, in the ULGA70 case, I thought it had already been added to the ONFI standard
gold6565
  • gold6565
  • Posts: 71
  • Joined: February 18th, 2020, 9:35
  • Location: Ukraina

Re: NAND LGA70 pinouts?

April 18th, 2022, 13:41

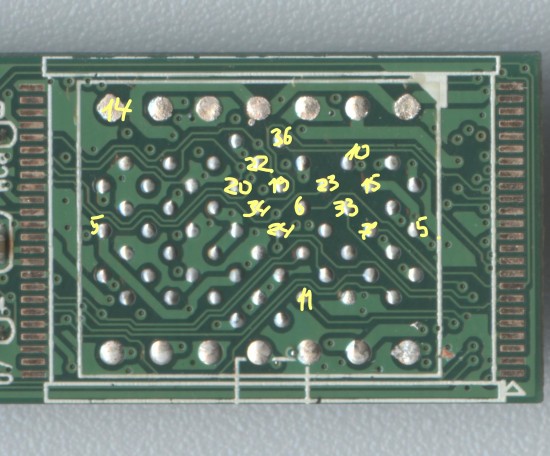

Here is a friend who called the contacts , the PS2251-07 controller
Attachments
hanalog
  • hanalog
  • Posts: 1
  • Joined: December 20th, 2024, 13:36
  • Location: Viet Nam

Re: NAND LGA70 pinouts?

April 18th, 2026, 9:40

NSerN wrote:Hi. NAND LGA70 from USB flash drive.
Need help with pinoust. maybe someone has? Thx!


LGA70 pinout:
https://drive.google.com/file/d/1gHm7dH ... sp=sharing
