HaQue
 Post subject: Re: Marvell 88i6745n JTAG
PostPosted: May 7th, 2015, 18:35
Offline
User avatar

Joined: December 4th, 2012, 1:35
Posts: 3963
Location: Adelaide, Australia

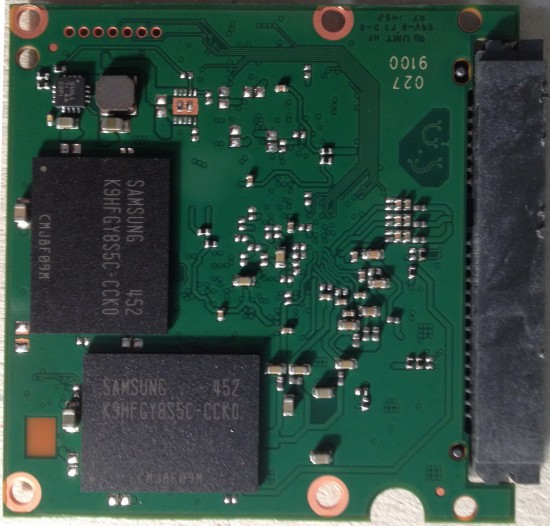

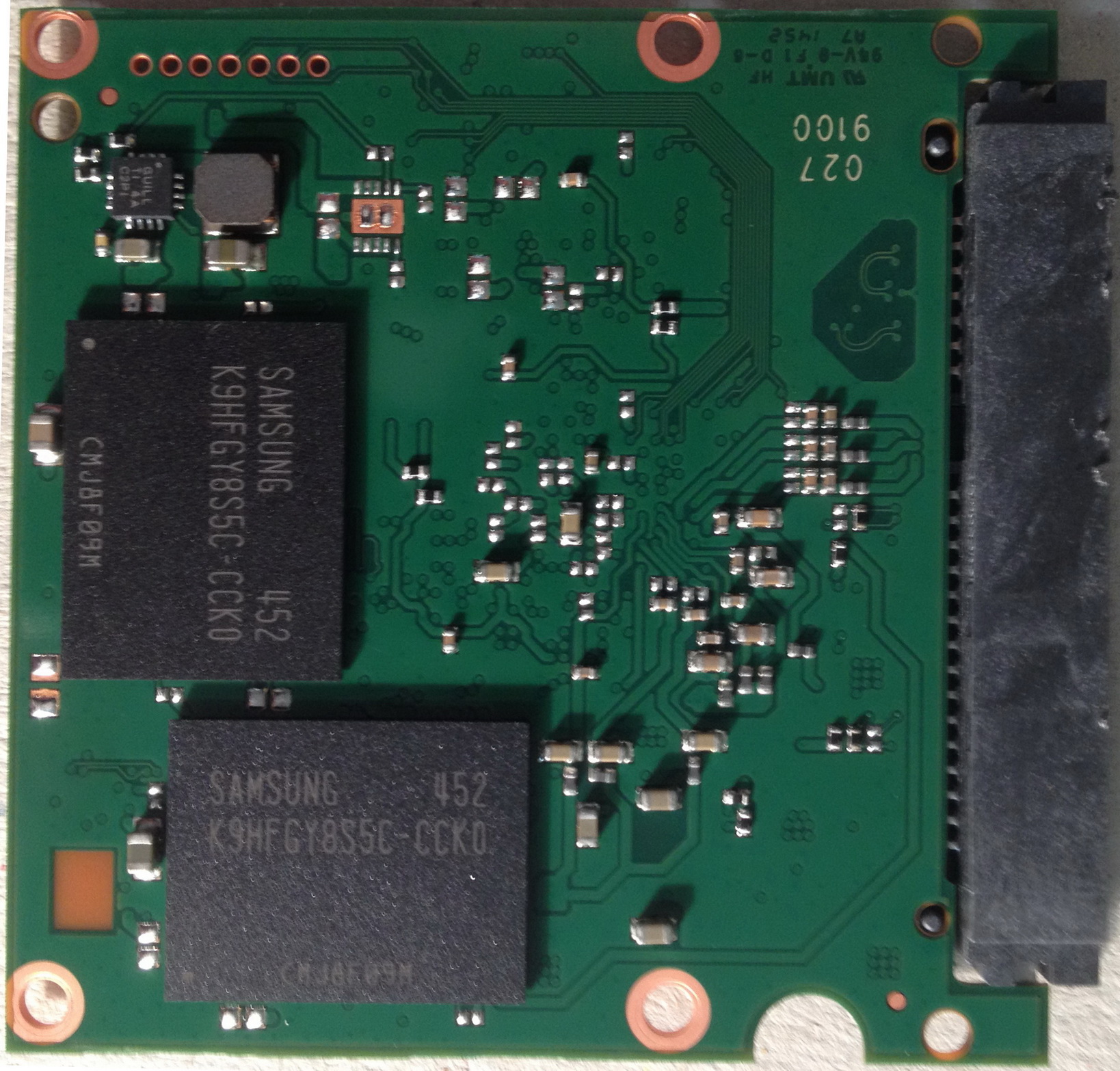

Samsung MZ-7PD128M

Attachment:
MZ-7PD128M-1.jpg [ 955.54 KiB | Viewed 80887 times ]

Attachment:
MZ-7PD128M-2.jpg [ 736.57 KiB | Viewed 80887 times ]


Top
 Profile

HaQue
 Post subject: Re: Marvell 88i6745n JTAG
PostPosted: May 7th, 2015, 21:19
Offline
User avatar

Joined: December 4th, 2012, 1:35
Posts: 3963
Location: Adelaide, Australia
I would like to keep the post a couple back where I quoted Doomer and _dex_, but I would rather keep this thread true to _dex_'s content and I will start another thread for each of the SSDs I am looking at.

I don't want _dex_ and Doomer's work to be buried in a long meandering off topic thread.

If a Moderator wants to delete the above post with 2 pictures(or not) is fine by me. I will only post here again if it is very on topic.
Top
 Profile

NuttyProfessor
 Post subject: Re: Marvell 88i6745n JTAG
PostPosted: May 11th, 2015, 17:35
Offline

Joined: April 28th, 2015, 9:15
Posts: 5
Location: United States
I'm certainly not the expert, but those seven plated wholes are pretty suspect.
Assuming just a two sided board it looks like at least six of them have traces.
Could be jTAG, and, or, serial there.

Meter them out. See if some have the typical 3.3 or 1.8v logic levels.
Top
 Profile

freebird2992
 Post subject: Re: Marvell 88i6745n JTAG
PostPosted: February 27th, 2016, 5:58
Offline

Joined: September 29th, 2014, 18:43
Posts: 5
Location: china
Hi , i want make friend with you ! my QQ:1186046994
Top
 Profile

jermy
 Post subject: Re: Marvell 88i6745n JTAG
PostPosted: February 27th, 2016, 14:00
Offline

Joined: March 19th, 2015, 15:01
Posts: 1388
Location: isreal
freebird2992 wrote:
Hi , i want make friend with you ! my QQ:1186046994

friend with who ?
if you mean the OP ?!
the OP don't have the ability to use QQ anymore :( (read page 4)
Top
 Profile

einstein9
 Post subject: Re: Marvell 88i6745n JTAG
PostPosted: June 8th, 2019, 11:37
Offline
User avatar

Joined: May 13th, 2010, 11:17
Posts: 2848
Location: Kuwait

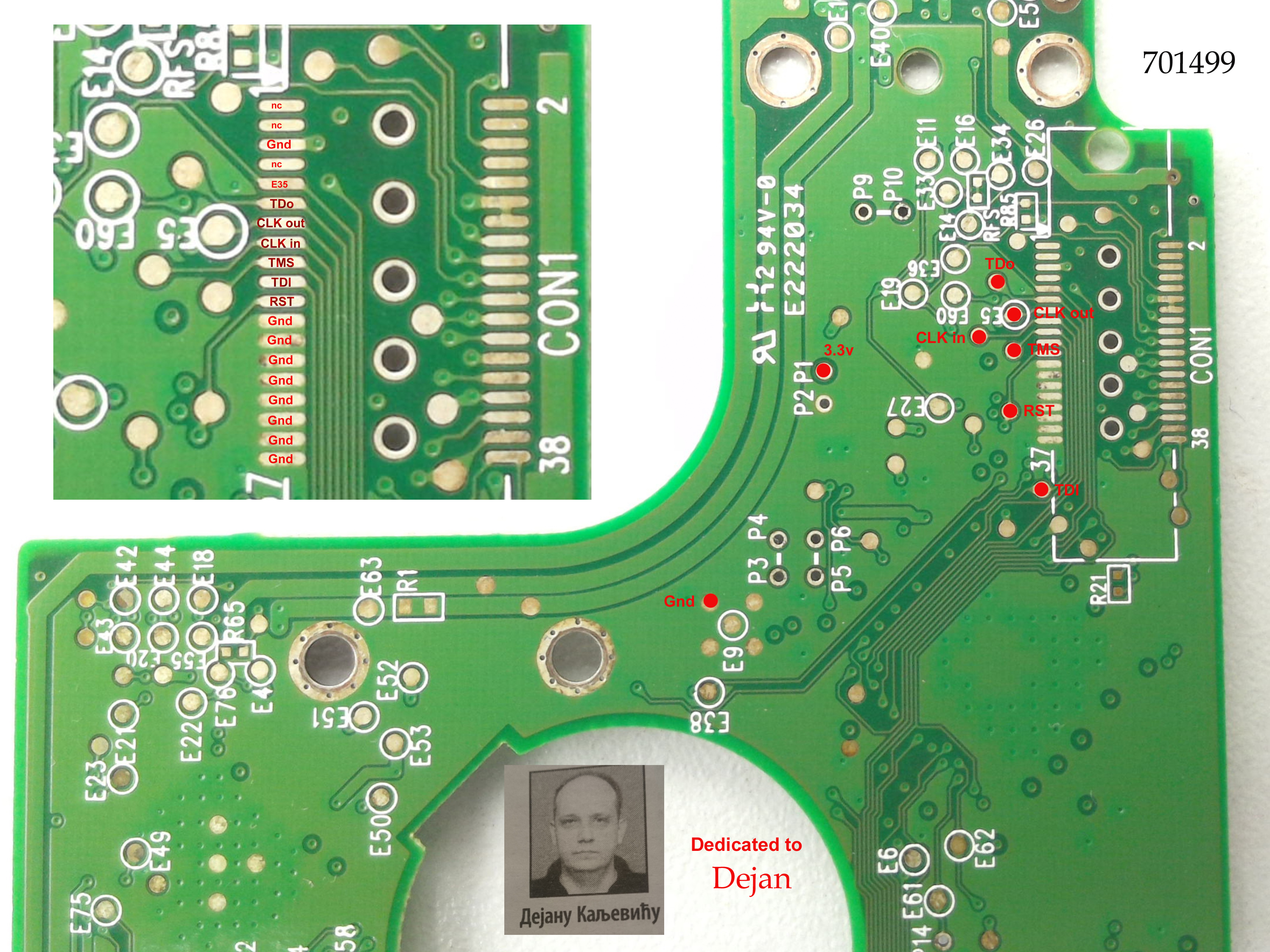

A better image to the Source Code of Marvell JTAG

R.I.P. dejan....

Its Hard to forget someone like you....


Attachments:
701499_JTAG_pinout - forum.jpg
701499_JTAG_pinout - forum.jpg [ 3.09 MiB | Viewed 75734 times ]

_________________
Kuwait Data Recovery - UNIX GTC
The only reason for time is so that everything doesn't happen at once. By: Albert Einstein
Top
 Profile

einstein9
 Post subject: Re: Marvell 88i6745n JTAG
PostPosted: June 13th, 2019, 5:44
Offline
User avatar

Joined: May 13th, 2010, 11:17
Posts: 2848
Location: Kuwait
Sean, you asked me and i got the Tool Today.... :wink:

Really appreciate his recommendation


Attachments:
DHL_.jpg [ 1.53 MiB | Viewed 75667 times ]

_________________
Kuwait Data Recovery - UNIX GTC
The only reason for time is so that everything doesn't happen at once. By: Albert Einstein
Top
 Profile

fzabkar
 Post subject: Re: Marvell 88i6745n JTAG
PostPosted: June 15th, 2019, 17:44
Offline
User avatar

Joined: September 8th, 2009, 18:21
Posts: 17215
Location: Australia
einstein9 wrote:
Sean, you asked me and i got the Tool Today.... :wink:

Really appreciate his recommendation

https://www.jtag.com/ru/product/jtag-live-controller/ :wink: :wink: :wink:

_________________
A backup a day keeps DR away.
Top
 Profile

HaQue
 Post subject: Re: Marvell 88i6745n JTAG
PostPosted: June 16th, 2019, 6:13
Offline
User avatar

Joined: December 4th, 2012, 1:35
Posts: 3963
Location: Adelaide, Australia
195 Euros? to do JTAG? Holy Shit, would want some pretty good features
Top
 Profile

einstein9
 Post subject: Re: Marvell 88i6745n JTAG
PostPosted: June 16th, 2019, 7:42
Offline
User avatar

Joined: May 13th, 2010, 11:17
Posts: 2848
Location: Kuwait
HaQue wrote:
195 Euros? to do JTAG? Holy Shit, would want some pretty good features


Diff. screw drivers (brands) to do the same job :idea:

_________________
Kuwait Data Recovery - UNIX GTC
The only reason for time is so that everything doesn't happen at once. By: Albert Einstein
Top
 Profile

HaQue
 Post subject: Re: Marvell 88i6745n JTAG
PostPosted: June 16th, 2019, 20:12
Offline
User avatar

Joined: December 4th, 2012, 1:35
Posts: 3963
Location: Adelaide, Australia
Kia's & Ferrari's... Gotchya! ;-)
Top
 Profile

fzabkar
 Post subject: Re: Marvell 88i6745n JTAG
PostPosted: June 17th, 2019, 3:35
Offline
User avatar

Joined: September 8th, 2009, 18:21
Posts: 17215
Location: Australia
If you're testing the waters, here is a JTAG identification tool (JTAGenum) for US$3, delivered.

JTAGulator vs. JTAGenum, Tools for Identifying JTAG Pins in IoT Devices:
https://www.praetorian.com/blog/jtagulator-vs-jtagenum-tools-for-identifying-jtag-pins-in-iot-devices?edition=2019

Quote:
What are some other differences between the two options?

As far as hardware differences go the JTAGulator has built in level conversion and input protection. This is why I am releasing a shield for the Arduino which provides the exact same capabilities. The open hardware designs for the shield are available here:

https://github.com/dxa4481/inputProtectionShield

_________________
A backup a day keeps DR away.
Top
 Profile

SANJAY
 Post subject: Re: Marvell 88i6745n JTAG
PostPosted: April 6th, 2020, 10:10
Offline

Joined: July 9th, 2015, 14:11
Posts: 3
Location: india
einstein9, I WANT SOME REVIEW IN THIS POST. TDO SIGNAL IS TOO HIGH ITS 2.70 .OPENOCD NOT GET ID
Top
 Profile

SANJAY
 Post subject: Re: Marvell 88i6745n JTAG
PostPosted: April 6th, 2020, 10:14
Offline

Joined: July 9th, 2015, 14:11
Posts: 3
Location: india
guru, anyone help me this topic. tdo signal is too high it is 2.7 volt .how to get id .pls help
Top
 Profile

Smyg
 Post subject: Re: Marvell 88i6745n JTAG
PostPosted: August 14th, 2023, 14:36
Offline

Joined: October 13th, 2005, 8:35
Posts: 6
Location: АР Крым
Quote:
or PASS for RAR file: http://www.griol.com/ftp/WD/88I6745.rar ?

q1w2e3r4t5y6u7i8o9p0
Top
 Profile
