One of my DIY`s - Prototype

[einstein9]

coz am too Lazy really soldering and since this takes some time, i came up with this idea
2 days back, and got some parts from Eric. for the Pro. ver. of this which is coming on the way..

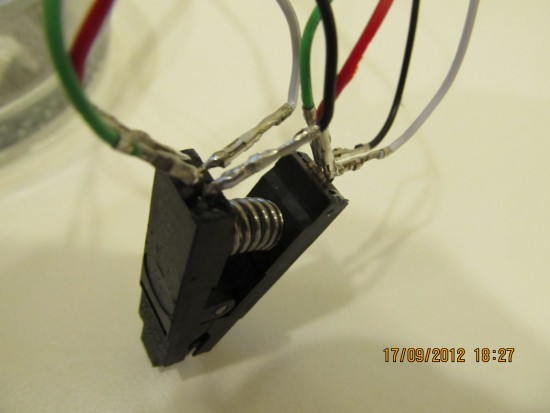

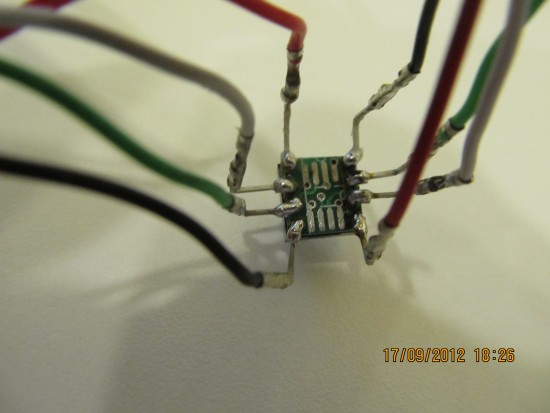

here is something really FAST, Useful for such Quick task.

I was chatting today with Dr.Kiev about something which made me crazy in Helios since i got like 12 cases (at least) to do
and feel too LAZY again to solder and fix those dead pcb`s.

in addition Dr.kiev i tried almost everything as i told you - none worked.

but this is really Amazing and Fast.. hope you guys can use it...

btw, the (LAZY) is something which Mr. Eric always used to tell me,,,

leave you here with the images...

good luck

Attachments


(860.98 KiB) Not downloaded yet

[einstein9]

for some reason the 3rd. is not showing... uploaded here alone

Attachments


(860.98 KiB) Not downloaded yet

[pclab]

AHAHAHAH Nice one.

[quasimodo]

read-write-serial-flash-wdc-logic-boards-t7192.html

[einstein9]

Yup........

thats it...
